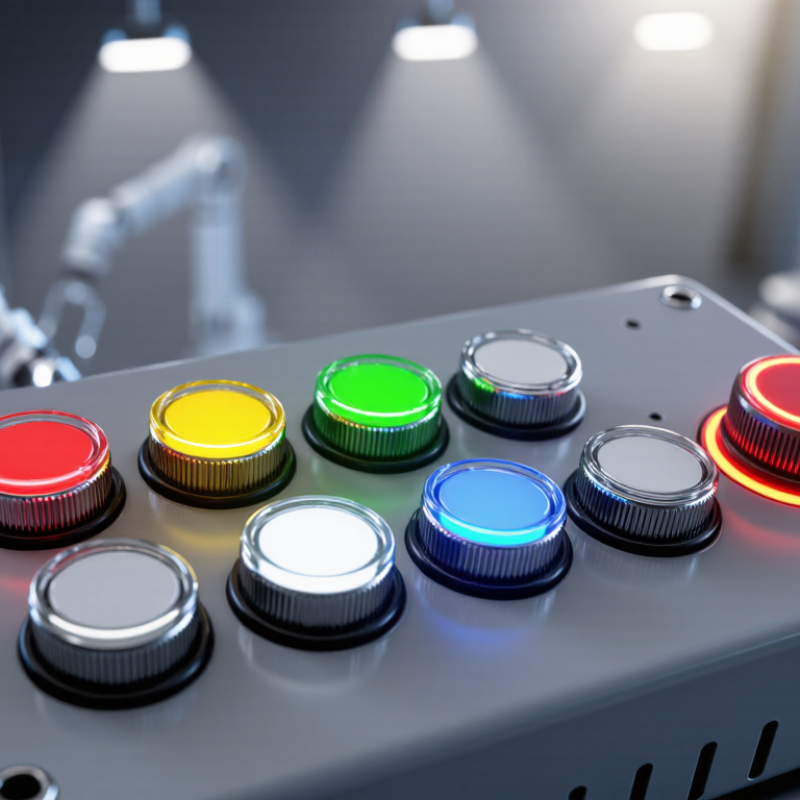

7 Tips for Choosing the Right Illuminated Push Button
Choosing an Illuminated Push Button is a small decision with significant operational consequences. In a control panel, one colored ring may signal power, fault status, reset permission, or emergency attention. The wrong selection can create confusion, glare, premature failure, or costly maintenance.
Industry growth makes this choice more important. The International Federation of Robotics reported 541,302 industrial robots installed worldwide in 2023. These systems depend on clear, reliable human-machine interfaces. A button must remain visible beside moving equipment, protective guarding, and changing factory light. It must also match the control circuit, enclosure, and expected operating frequency.
Standards provide a useful starting point. IEC 60204-1 addresses electrical equipment for machinery, while IEC 60947-5-1 covers control-circuit devices and switching elements. These references help engineers evaluate insulation, switching performance, and application risks. However, compliance alone does not guarantee good usability. A compliant button can still be difficult to read through safety glasses or awkward to operate with gloves.
This guide presents seven practical tips for choosing the right Illuminated Push Button. It considers voltage compatibility, contact configuration, illumination color, ingress protection, materials, tactile feedback, and service life. Manufacturer datasheets and verified test conditions matter more than attractive product photos. They do.
Some decisions remain subjective. Blue may look modern, yet operators might expect red for a stop condition. A brighter lamp may improve visibility, but it can cause distracting reflections. Careful testing under real panel lighting is essential. The best choice is not always the most expensive one; it is the button that communicates clearly, survives its environment, and supports dependable maintenance.
Define the Application and Required 22 mm or 30 mm Mounting Format
Start with the machine, not the button. Define the application before comparing illuminated push buttons.
A foot pedal, control cabinet, and emergency-access panel require different operating details. A gloved operator may need a larger actuator and stronger tactile feedback. In a dim enclosure, the indicator must remain visible from the working angle. Outdoor equipment also needs suitable sealing and temperature resistance. Do not assume one switch fits every environment.
Then confirm the mounting format. A 22 mm button usually suits compact panels and limited control space. A 30 mm button offers more visible surface and easier operation with gloves. Measure the existing panel hole with a calibrated tool. Check panel thickness, rear clearance, and anti-rotation features. A small mismatch can stop installation.
I once treated the stated hole size as the complete specification. That was careless. The retaining nut could not engage properly because the panel was too thick. Check the datasheet, then test a sample in the real panel. Confirm contact ratings, illumination voltage, actuator life, and protection level with a qualified technician. Also verify the marking remains readable after repeated cleaning. A bright light is not enough. Reliable selection depends on fit, function, and honest field testing.
7 Tips for Choosing the Right Illuminated Push Button
Define the application first, then select the appropriate 22 mm or 30 mm mounting format based on panel space, visibility, operating conditions, and user requirements.
Nominal Mounting Format Comparison
The chart compares the circular panel opening area calculated from each nominal mounting diameter using the formula π × diameter² ÷ 4.
- Define whether the button is intended for machine control, operator panels, access systems, or service equipment.
- Choose a 22 mm format when panel space is limited and compact control layouts are important.
- Choose a 30 mm format when a larger control area is preferred for visibility or gloved operation.
- Select illumination colors that clearly distinguish functions such as start, stop, warning, and status indication.
- Check the required contact arrangement, switching function, and electrical ratings for the circuit.
- Confirm ingress protection, temperature range, vibration resistance, and cleaning requirements.
- Verify panel thickness, mounting hardware, wiring access, and compatibility with the existing enclosure.
Match Voltage, Current, and Utilization Category to IEC 60947-5-1
Choosing the right illuminated push button involves more than matching the lamp color to a control panel. The contact rating must suit the actual circuit and the requirements of IEC 60947-5-1. Check the rated operational voltage (Ue), rated operational current (Ie), and utilization category together. A button rated for AC-15 may be suitable for electromagnetic control loads, while DC-13 addresses electromagnetic loads on direct current. These categories reflect switching duty, not just voltage and current.
Tip 1:
Separate the lamp circuit from the contact circuit. The LED or lamp may require 24 V DC, while the contacts switch 230 V AC. Confirm each rating independently.
Tip 2:
Calculate the real load. A relay coil, contactor coil, or solenoid can create a demanding switching condition, even when its steady current looks small. Never select a device from voltage alone.
Tip 3:
Read the complete datasheet. Look for Ue, Ie, Ith, insulation voltage, terminal limits, and the stated utilization category. Also check whether the rating applies to AC, DC, or both.
Field experience shows that many panel mistakes begin with confusing Ith, the conventional free-air thermal current, with Ie, the operational switching current. They are not interchangeable. Mechanical life also changes with load type and switching frequency. A conservative choice is often wiser, but it should still be evidence-based. If the application is unclear, stop and verify the load waveform, coil suppression, and ambient conditions before ordering. Small omissions become expensive later.
Compare LED Colors, Life Ratings, and 24 VDC Illumination Options
Choosing the right illuminated push button starts with color, not appearance alone. Red usually signals stop or fault conditions, while green commonly indicates running or safe status. Amber can mark warnings, but users may interpret it differently. Color matters.
The U.S. Department of Energy reports that LED sources can use about 75% less energy than incandescent lighting and last much longer. However, a 50,000-hour LED rating does not guarantee 50,000 hours inside every push button. Heat, switching frequency, vibration, and panel temperature can reduce real service life. IES LM-80 and TM-21 methods help evaluate LED lumen maintenance, but they do not replace application testing. Do not guess.
For industrial control panels, 24 VDC illumination often offers a practical balance between safety, wiring simplicity, and compatibility with control systems. Confirm the button’s rated voltage range, current draw, polarity, and reverse-voltage protection before installation. IEC 60947-5-1 provides useful guidance for low-voltage control and switching devices, but the complete assembly still needs proper engineering review. A clear lens may look brighter, yet a diffused lens usually improves viewing from an angle. Small details matter. A cautious selection compares color visibility, rated life conditions, and actual 24 VDC performance under heat—not only the catalog headline.
Check UL 508 Compliance, Actuation Force, and Mechanical Life Cycles
Choosing the right illuminated push button starts with compliance, not appearance.
UL 508 covers industrial control equipment, while UL 508A addresses industrial control panels. Confirm the component’s certification, voltage rating, wiring method, and enclosure conditions. Do not rely on a supplier’s “UL compatible” wording. Check the certification record and required conditions of acceptability.
Actuation force affects speed, comfort, and accidental activation.
A force around 2–5 N often suits panel operation, but gloves and vibration can change the real experience. Test the button with the operator’s actual gloves. A datasheet can still mislead. The IEC 60947-5-1 framework supports evaluating switching devices under defined electrical and mechanical conditions. Yet laboratory results may not match a dusty production floor.
Mechanical life also deserves careful reading.
A rating of one million cycles sounds impressive, but it may exclude electrical loads, side pressure, or emergency stops. Ask whether the figure represents no-load operation or complete rated-load testing.
The U.S. Bureau of Labor Statistics reported 2.6 million nonfatal workplace injuries and illnesses in private industry during 2023.
This figure does not prove that button selection causes injuries. It does remind engineers to treat tactile feedback and reliable operation as safety factors, not cosmetic features. Before purchase, record force, illumination, cycle rating, ingress protection, and test conditions in the specification.
