Top Micro Switch Supplier FSK-20-T-005 from Tongda Factory China
sales01@tdweipeng.com / 0086-577-57158583
China
China Wholesale Small Micro Switch Suppliers - FSK-20-T-005 – Tongda Featured Image
  • China Wholesale Small Micro Switch Suppliers - FSK-20-T-005 – Tongda

China Wholesale Small Micro Switch Suppliers - FSK-20-T-005 – Tongda


China Wholesale Small Micro Switch Suppliers - FSK-20-T-005 – Tongda

Product Tags

Related Video

Feedback (2)

In order to best meet client's needs, all of our operations are strictly performed in line with our motto "High Quality, Competitive Price, Fast Service" for 2 Position Rocker Switch , Micro Switch Honeywell , Micro Switch Button , We will supply best quality, the most market competitive price, for every new and old customers with the most perfect green services.
China Wholesale Small Micro Switch Suppliers - FSK-20-T-005 – Tongda Detail:

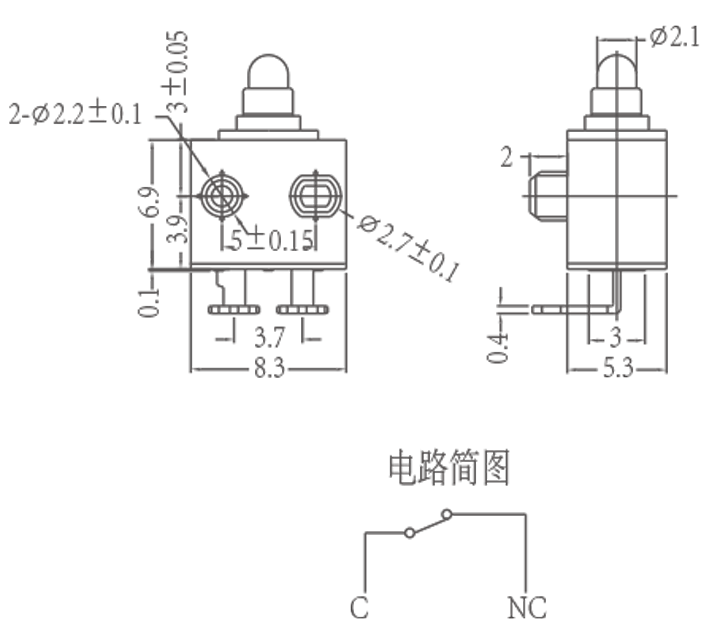

Size chart

FSK-20-T-005-

Switch technical Characteristics

ITEM）

（technical parameter）

（Value）

1

（Electrical Rating）

0.1A 250VAC

2

(Operating Force)

1.0～2.5N

3

（Contact  Resistance）

≤300mΩ

4

(Insulation Resistance)

≥100MΩ(500VDC)

5

（Dielectric Voltage）

（between non-connected terminals）

500V/0.5mA/60S

(between terminals and the metal frame)

1500V/0.5mA/60S

6

(Electrical Life)

≥50000 cycles

7

(Mechanical Life)

≥100000 cycles

8

（Operating Temperature）

-25～105℃

9

（Operating Frequency）

（electrical）:15 cycles（Mechanical）:60 cycles

10

（Vibration Proof）

（Vibration Frequency）：10～55HZ；（Amplitude）：1.5mm;（Three directions）:1H

11

(Solder Ability)(More than 80% of immersed part shall be covered with solder)

(Soldering Temperature)：235±5℃(Immersing Time)：2～3S

12

（Solder Heat Resistance）

（Dip Soldering）：260±5℃ 5±1SManual Soldering）：300±5℃ 2～3S

13

（Test Conditions）

（Ambient Temperature）：20±5℃（Relative Humidity）：65±5%RH（Air Pressure）：86～106KPa
Product detail pictures:

China Wholesale Small Micro Switch Suppliers - FSK-20-T-005 – Tongda detail pictures
