China Wholesale Push Button Micro Switch Pricelist - HK-04G AD – Tongda Detail:

Switch action Characteristics

The defining characteristics of operation	Operating Parameter	Abbreviation	Units	Value
	Free Position	FP	mm	12.1±0.2
	Operating Position	OP	mm	11.5±0.5
	Releasing Position	RP	mm	11.7±0.5
	Total travel Position	TTP	mm	10.7
	Operating Force	OF	N	1.0~3.5
	Releasing Force	RF	N	—
	Total travel Force	TTF	N	—
	Pre Travel	PT	mm	0.3~1.0
	Over Travel	OT	mm	0.2Min
	Movement Differential	MD	mm	0.4Max

Switch technical Characteristics

ITEM	technical parameter		Value
1	Electrical Rating		5A/10A 250VAC
2	Contact Resistance		≤50mΩInitial value
3	Insulation Resistance		≥100MΩ500VDC
4	Dielectric Voltage	between non-connected terminals	500V/0.5mA/60S
		between terminals and the metal frame	1500V/0.5mA/60S
5	Electrical Life		≥10000 cycles
6	Mechanical Life		≥100000 cycles
7	Operating Temperature		0~125℃
8	Operating Frequency		electrical:15 cyclesMechanical:60 cycles
9	Vibration Proof		Vibration Frequency:10~55HZ； Amplitude:1.5mm; Three directions:1H
10	Solder Ability: More than 80% of immersed part shall be covered with solder		Soldering Temperature:235±5℃Immersing Time:2~3S
11	Solder Heat Resistance		Dip Soldering:260±5℃ 5±1SManual Soldering:300±5℃ 2~3S
12	Safety Approvals		UL,CSA,VDE,ENEC,CE
13	Test Conditions		Ambient Temperature:20±5℃Relative Humidity:65±5%RH Air Pressure:86~106KPa

Switch application: widely used in various household appliances, electronic equipment, automation equipment, communication equipment, automotive electronics, power tools and other fields.

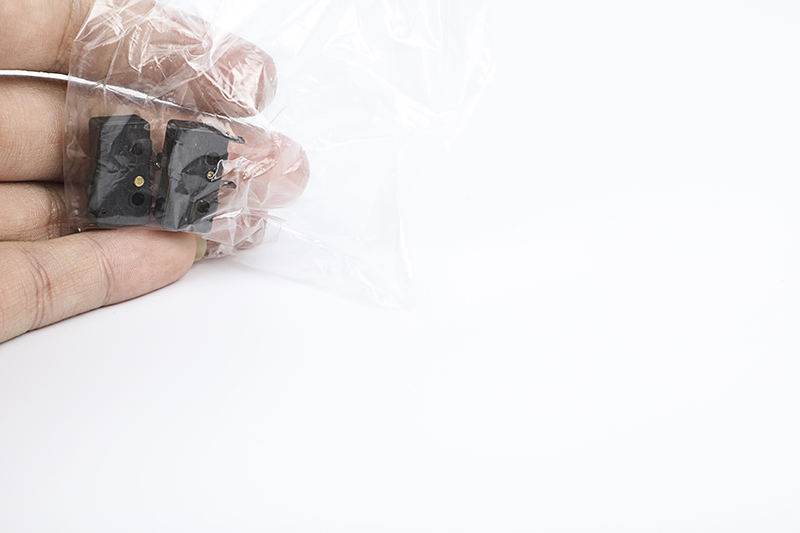

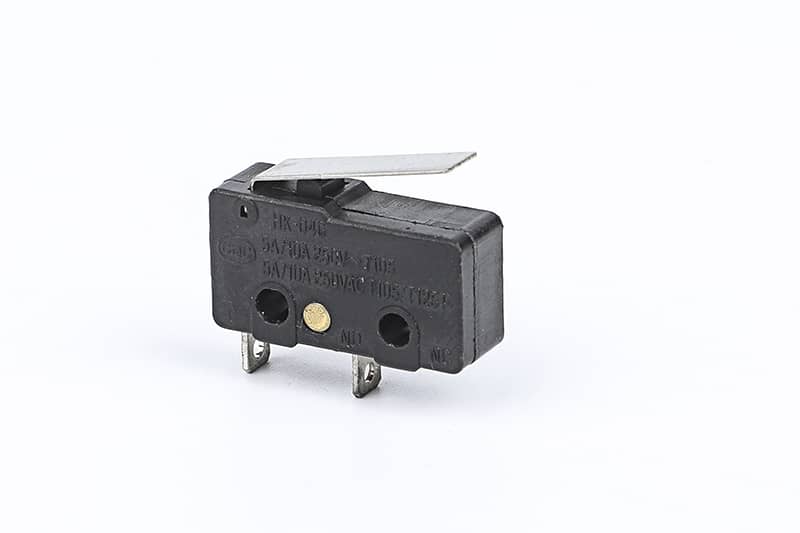

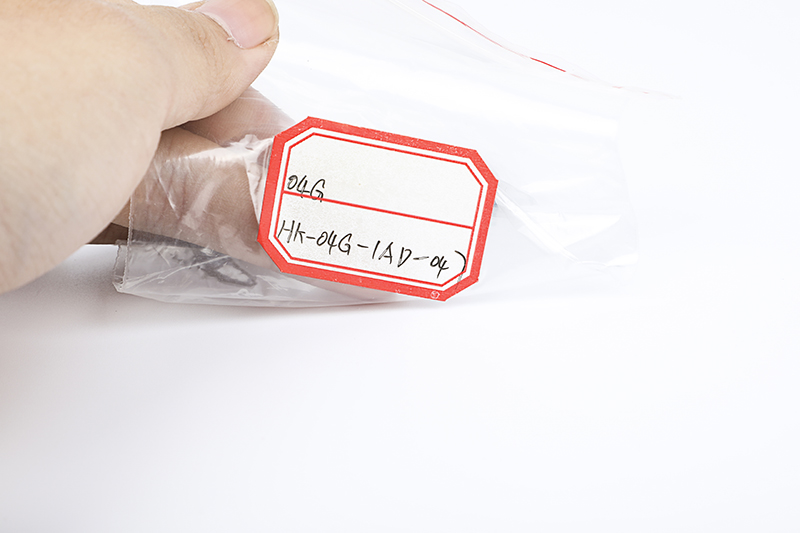

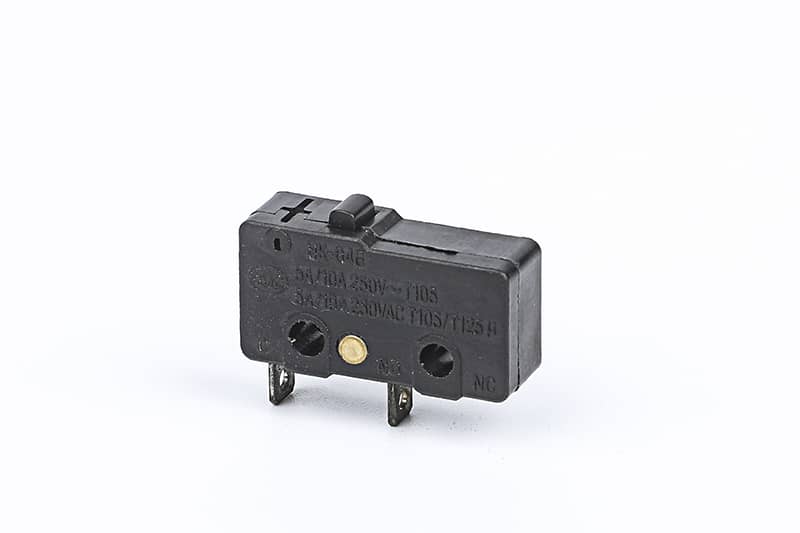

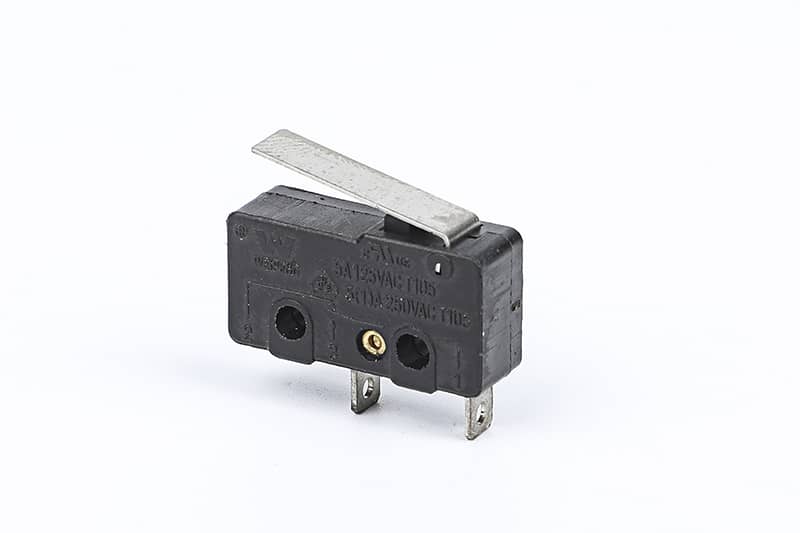

Product detail pictures:
