China Wholesale Micro Switch 5a 250vac 10t85 Suppliers - FSK-20-T-005 – Tongda Detail:

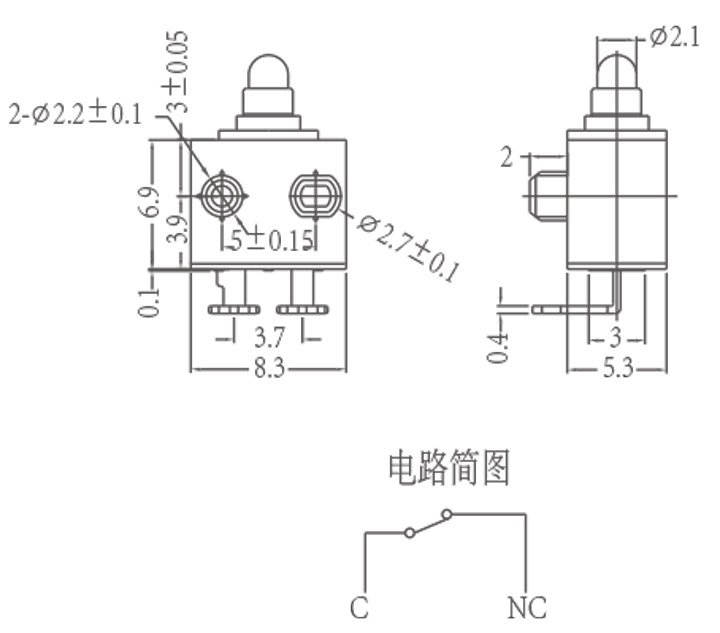

Size chart

FSK-20-T-005-

Switch technical Characteristics

ITEM）

（technical parameter）

（Value）

1

（Electrical Rating）

0.1A 250VAC

2

(Operating Force)

1.0～2.5N

3

（Contact  Resistance）

≤300mΩ

4

(Insulation Resistance)

≥100MΩ(500VDC)

5

（Dielectric Voltage）

（between non-connected terminals）

500V/0.5mA/60S

(between terminals and the metal frame)

1500V/0.5mA/60S

6

(Electrical Life)

≥50000 cycles

7

(Mechanical Life)

≥100000 cycles

8

（Operating Temperature）

-25～105℃

9

（Operating Frequency）

（electrical）:15 cycles（Mechanical）:60 cycles

10

（Vibration Proof）

（Vibration Frequency）：10～55HZ；（Amplitude）：1.5mm;（Three directions）:1H

11

(Solder Ability)(More than 80% of immersed part shall be covered with solder)

(Soldering Temperature)：235±5℃(Immersing Time)：2～3S

12

（Solder Heat Resistance）

（Dip Soldering）：260±5℃ 5±1SManual Soldering）：300±5℃ 2～3S

13

（Test Conditions）

（Ambient Temperature）：20±5℃（Relative Humidity）：65±5%RH（Air Pressure）：86～106KPa
Product detail pictures:

China Wholesale Micro Switch 5a 250vac 10t85 Suppliers - FSK-20-T-005 – Tongda detail pictures
