Premium Micro Limit Switch with Roller - HK-14-16A-006 by Tongda

China Wholesale Micro Limit Switch With Roller Pricelist - HK-14-16A-006 – Tongda

Product Tags

Feedback (2)

Our objective is to present premium quality products at aggressive prices, and top-notch services to buyers around the world. We have been ISO9001, CE, and GS certified and strictly adhere to their excellent specifications for Waterproof Micro Switch 12v , 20 Amp Rocker Switch , Zippy Micro Switch , We stick to providing integration solutions for customers and hope to build long-term, stable, sincere and mutual beneficial relationships with customers. We sincerely look forward to your visit.

China Wholesale Micro Limit Switch With Roller Pricelist - HK-14-16A-006 – Tongda Detail:

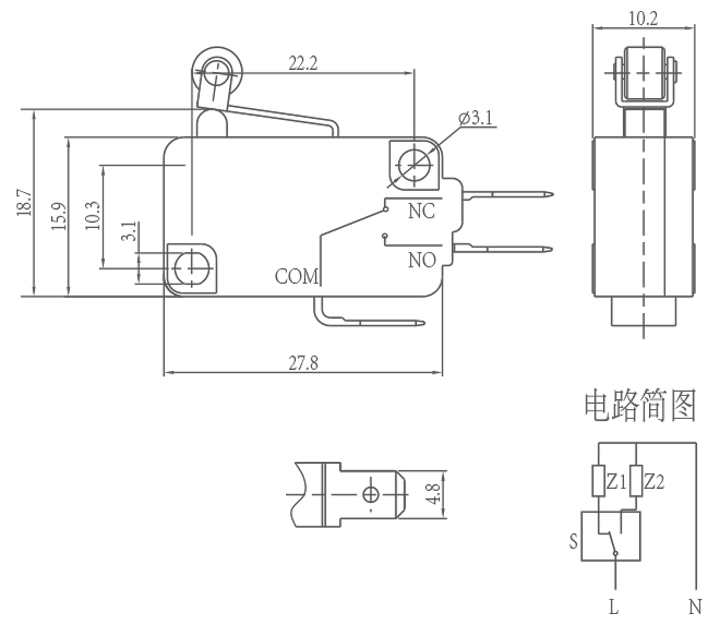

Size chart

Switch action Characteristics

The defining characteristics of operation	Operating Parameter	Value	Units
	Free Position FP	15.9±0.2	mm
	Operating Position OP	14.9±0.5	mm
	Releasing Position RP	15.2±0.5	mm
	Total travel Position	13.1	mm
	Operating Force OF	0.25~4	N
	Releasing Force RF	—	N
	Total travel Force TTF	—	N
	Pre Travel PT	0.5~1.6	mm
	Over Travel OT	1.0Min	mm
	Movement Differential MD	0.4Max	mm

Switch technical Characteristics

ITEM	technical parameter		Value
1	Contact Resistance		≤30mΩ Initial value
2	Insulation Resistance		≥100MΩ500VDC
3	Dielectric Voltage	between non-connected terminals	1000V/0.5mA/60S
		between terminals and the metal frame	3000V/0.5mA/60S
4	Electrical Life		≥50000 cycles
5	Mechanical Life		≥1000000 cycles
6	Operating Temperature		-25~125℃
7	Operating Frequency		electrical:15 cycles Mechanical:60 cycles
8	Vibration Proof		Vibration Frequency:10~55HZ; Amplitude:1.5mm; Three directions:1H
9	Solder Ability: More than 80% of immersed part shall be covered with solder		Soldering Temperature:235±5℃ Immersing Time:2~3S
10	Solder Heat Resistance		Dip Soldering:260±5℃ 5±1S Manual Soldering:300±5℃ 2~3S
11	Safety Approvals		UL,CSA,VDE,ENEC,TUV,CE,KC,CQC
12	Test Conditions		Ambient Temperature:20±5℃ Relative Humidity:65±5%RH Air Pressure:86~106KPa

Switch application: widely used in various household appliances, electronic equipment, automation equipment, communication equipment, automotive electronics, power tools and other fields.

Introduction of Micro Switch

Micro switches are used for automatic control and safety protection in equipment that requires frequent circuit switching. They are widely used in electronic equipment, instrumentation, mining, power systems, household appliances, electrical equipment, as well as aerospace, aviation, ships, missiles, and Military fields such as tanks have been widely used in the above fields.
Although the switch is small, it plays an irreplaceable role.

Micro Switch
On the reed, when the moving reed is displaced to the critical point, an instantaneous action is generated, so that the moving contact and the fixed contact at the end of the moving reed are quickly connected or disconnected.
When the force on the transmission element is removed, the action reed produces a reverse action force. When the reverse stroke of the transmission element reaches the critical point of the action of the reed, the reverse action is instantaneously completed. The contact distance of the micro switch is small, the action stroke is short, the pressing force is small, and the on-off is rapid. The movement speed of the moving contact has nothing to do with the movement speed of the transmission element.

The micro switch has a small contact interval and a snap-action mechanism,
The contact mechanism that switches on and off with a prescribed stroke and prescribed force is covered with a casing,
A type of switch with a drive rod outside. Because the contact distance of the switch is relatively small, it is called a micro switch, also called a sensitive switch.
The electrical text symbol is: SM

working principle
External mechanical force acts on the action through transmission elements (push pins, buttons, levers, rollers, etc.)

Product detail pictures:

Related Product Guide:

Having a sound small business credit score, outstanding after-sales services and modern manufacturing facilities, we've got earned an fantastic reputation among our buyers across the globe for China Wholesale Micro Limit Switch With Roller Pricelist - HK-14-16A-006 – Tongda , The product will supply to all over the world, such as: Yemen , Marseille , belarus , It using the world's leading system for reliable operation, a low failure rate, it suitable for Argentina customers choice. Our company is situated within the national civilized cities, the traffic is very convenient, unique geographical and economic conditions. We pursue a people-oriented, meticulous manufacturing, brainstorm, build brilliant" business philosophy. Strict quality management, perfect service, reasonable price in Argentina is our stand on the premise of competition. If necessary, welcome to contact us by our website or phone consultation, we will be happy to serve you.

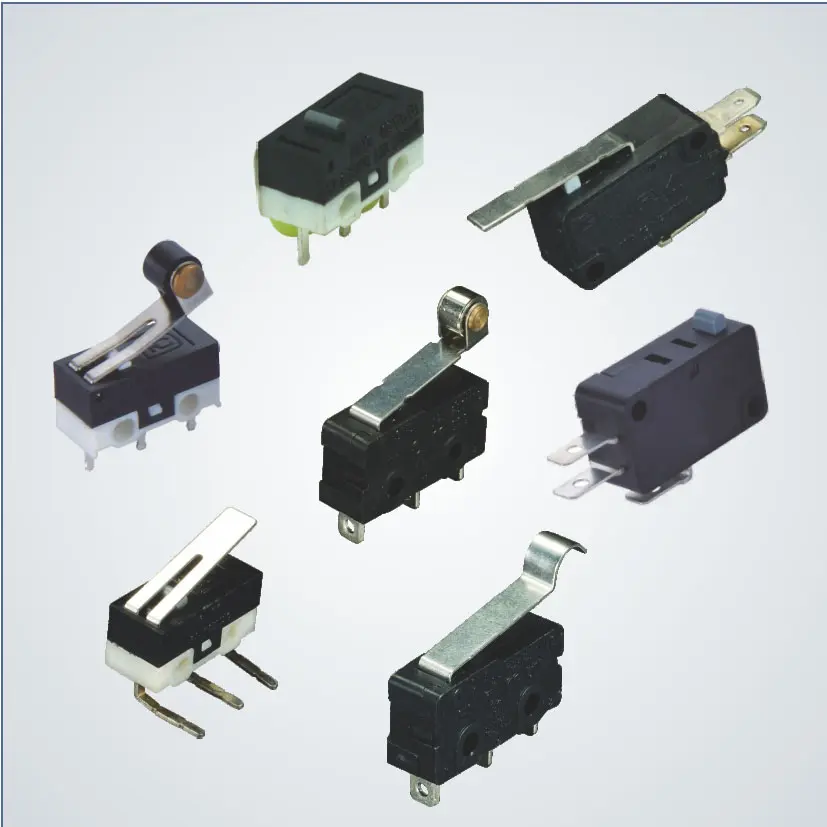

Long Lever Micro Switch
