China Wholesale Electrical Rocker Suppliers - FSK-20-010 – Tongda Detail:

FSK-20-010-

Switch technical Characteristics

ITEM）	（technical parameter）		（Value）
1	（Electrical Rating）		0.1A 250VAC
2	(Operating Force)		1.0～2.5N
3	（Contact Resistance）		≤300mΩ
4	(Insulation Resistance)		≥100MΩ(500VDC)
5	（Dielectric Voltage）	（between non-connected terminals）	500V/0.5mA/60S
		(between terminals and the metal frame)	1500V/0.5mA/60S
6	(Electrical Life)		≥50000 cycles
7	(Mechanical Life)		≥100000 cycles
8	（Operating Temperature）		-25～105℃
9	（Operating Frequency）		（electrical）:15 cycles（Mechanical）:60 cycles
10	（Vibration Proof）		（Vibration Frequency）：10～55HZ；（Amplitude）：1.5mm;（Three directions）:1H
11	(Solder Ability)(More than 80% of immersed part shall be covered with solder)		(Soldering Temperature)：235±5℃(Immersing Time)：2～3S
12	（Solder Heat Resistance）		（Dip Soldering）：260±5℃ 5±1SManual Soldering）：300±5℃ 2～3S
13	（Test Conditions）		（Ambient Temperature）：20±5℃（Relative Humidity）：65±5%RH（Air Pressure）：86～106KPa

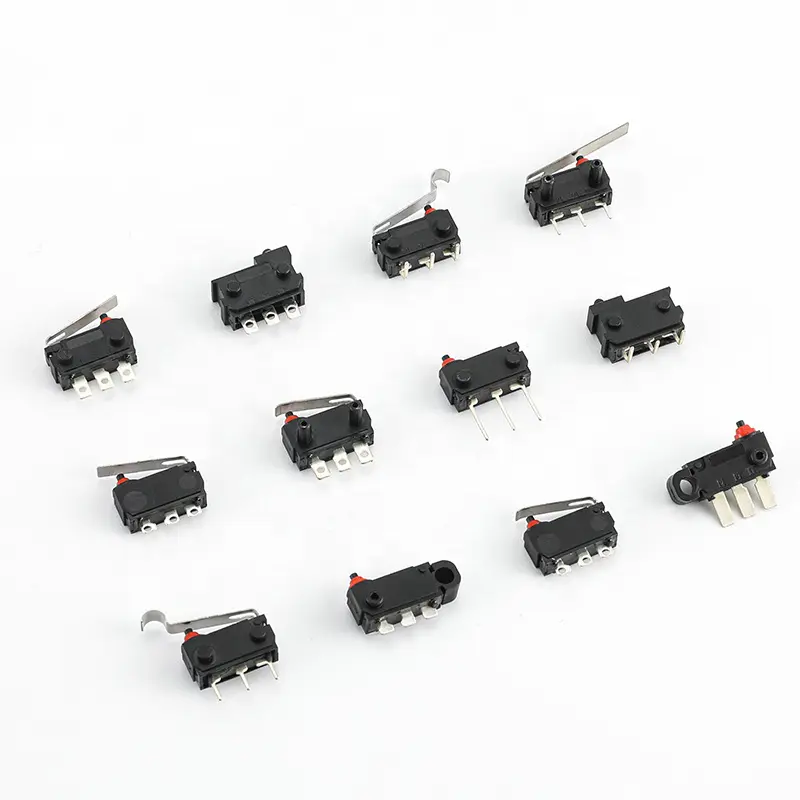

What is a waterproof micro switch?

The waterproof micro switch is a kind of waterproof switch with a small contact interval and a snap-action mechanism, a contact structure that uses a specified stroke and a specified force to switch action, and is covered by a shell and has a drive rod outside. With contacts: In the waterproof micro switch type, compared with the semiconductor switch with waterproof micro switch characteristics, the function of the switch is realized through the mechanical switch of the contact. In our lives, we often cannot do without the use of various electrical equipment. Most electrical appliances are now waterproof, so the micro switches used in electrical appliances also have a waterproof function.

Product detail pictures:
